3458A-RepairArticle/Measurements/AzeroCapture
History

readme.md

AzeroCapture.csv

DCV board:

  • Ch1 -> Vin
  • Ch2 -> U15B pin7
  • Ch3 -> U15A pin1
  • Ch4 -> U15B pin7

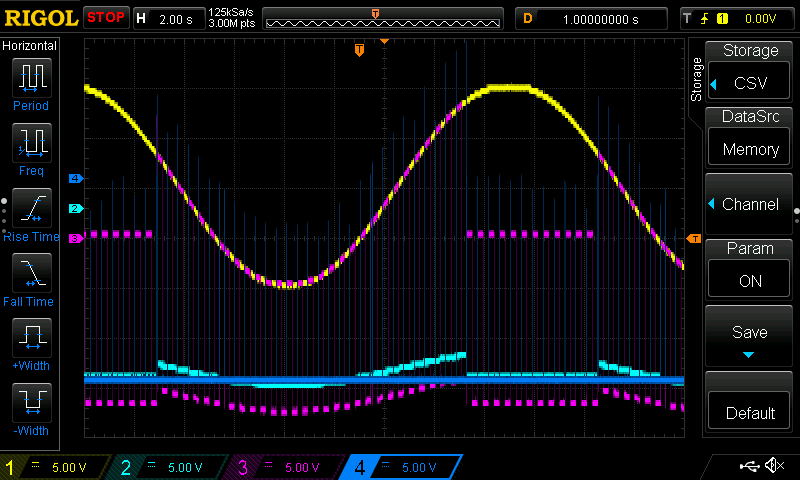

InputChainEnable.csv

DCV board:

  • Ch1 -> Vin
  • Ch2 -> U24A pin1
  • Ch3 -> U24A pin7
  • Ch4 -> U16 pin16

ImgB
